Portable Gas Leak Detector

• Accuracy
• 3% F.S.

• Display
• Digital LCD Display

• Gas Pressure
• Atmospheric

• Humidity
• 95% RH (non-condensing)

• Net Weight
• 180 g (approx.)

• Number of Specimens
• 1 location per measurement

• Operating Mode
• Continuous Monitoring

• Operating Temperature
• -10C to 50C

• Operating Voltage
• 3.7V Rechargeable Battery

• Pedestal Size
• Handheld/portable

• Port Size
• Standard for portable detectors

• Power Supply
• Lithium Rechargeable Battery (USB charging)

• Response Time
• 30 seconds

• Sensor
• Electrochemical, Catalytic or Semiconductor (varies by gas type)

• Shell Material
• ABS Plastic

• Specimen Size
• Not applicable (ambient sampling)

• Temperature
• -10C to 50C

• Test Material
• Combustible, Toxic or Oxygen Gases (depends on sensor type)

• Test Medium
• Air or Specific Gas (as per sensor)

• Test Range
• 0-1000 ppm (for typical models; varies as per sensor)

• Type

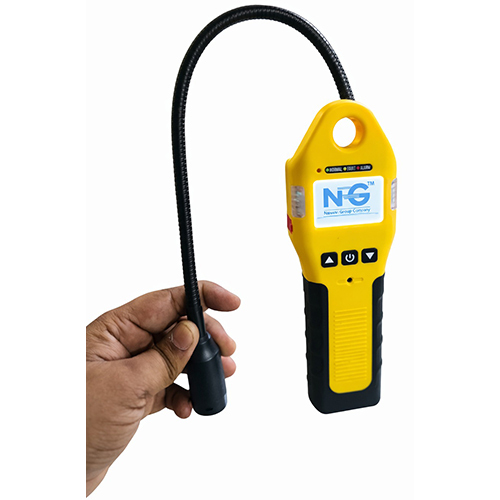

• Other, Handheld Single Gas Detector

• Use
• Detection of single gas leaks in ambient environment

• Accuracy
• 3% FS

• Display
• Digital Backlit LCD

• Gas Pressure
• Atmospheric

• Humidity
• 95% RH (non-condensing)

• Net Weight
• 1.2 kg

• Number of Specimens
• Single Specimen

• Operating Mode
• Automatic

• Operating Temperature
• -10C to +55C

• Operating Voltage
• 12V DC

• Pedestal Size
• 120 x 100 mm

• Port Size
• 1/4 inch

• Power Supply
• Rechargeable Battery/Adapter

• Response Time
• <30 seconds

• Sensor
• Electrochemical & Semiconductor

• Shell Material
• ABS Plastic

• Specimen Size
• Standard

• Temperature
• 0C to 50C

• Test Material
• Natural Gas, LPG, Methane, Propane, Hydrogen

• Test Medium
• Air, Combustible Gases

• Test Range
• 0-100% LEL

• Type

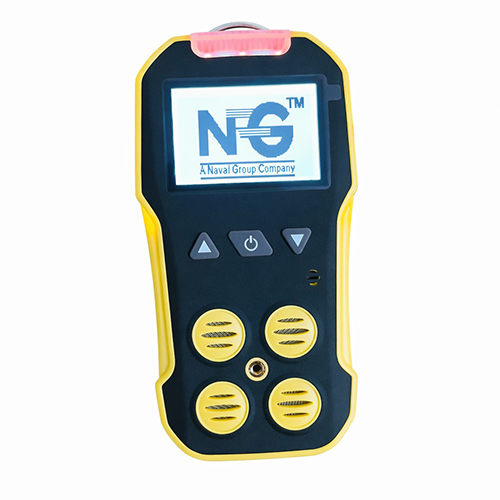

• Other, Multi Gas Leak Detector

• Use
• Industrial Gas Leak Detection

• Accuracy
• 5% F.S.

• Display
• Large LCD digital display

• Gas Pressure
• Atmospheric pressure

• Humidity
• 0-95% RH (non-condensing)

• Net Weight
• approx. 400 g

• Number of Specimens
• 1 (simultaneous multi-gas detection)

• Operating Mode
• Automatic

• Operating Temperature
• -20C to +50C

• Operating Voltage
• 3.7V rechargeable lithium battery

• Pedestal Size
• Handheld unit - not applicable

• Port Size
• Standard inlet (for flexible probe)

• Power Supply
• Rechargeable battery

• Response Time
• 30s (T90)

• Sensor
• Electrochemical (O2/CO/H2S), Catalytic (LEL)

• Shell Material
• ABS/PC composite

• Temperature
• -20C to +50C

• Test Material
• Oxygen, Carbon Monoxide, Hydrogen Sulfide, Combustible gases

• Test Medium
• Airborne gases

• Test Range
• O2: 0-30% Vol, CO: 0-1000ppm, H2S: 0-100ppm, EX: 0-100% LEL

• Type
• Other, Multi Gas Detector Inbuilt Pump

• Use
• Personal safety / Industrial gas detection

• Accuracy
• 10%

• Display
• Digital LCD Display

• Gas Pressure
• Atmospheric

• Humidity
• <95% RH (Non-condensing)

• Net Weight
• 600g

• Number of Specimens
• Single-point Measurement

• Operating Mode
• Handheld/Portable

• Operating Temperature
• -20C to +50C

• Operating Voltage
• DC 3.7V (Rechargeable Battery)

• Pedestal Size
• Compact

• Port Size
• Standard Size

• Power Supply
• Rechargeable Lithium Battery

• Response Time
• 1 second

• Sensor
• Tunable Diode Laser Absorption Spectroscopy (TDLAS)

• Shell Material
• ABS Engineering Plastic

• Temperature
• -20C to +50C

• Test Material
• Methane (CH4)

• Test Medium
• Methane Gas

• Test Range
• 0 - 10000 ppm

• Type
• Other, Laser Methane Gas Detector

• Use
• Methane Gas Detection

• Accuracy
• 5% F.S.

• Display
• Digital LCD Display

• Gas Pressure
• Atmospheric

• Humidity
• 95% RH (non-condensing)

• Net Weight
• Approx. 450g

• Number of Specimens
• Single

• Operating Mode
• Portable

• Operating Temperature
• -10C ~ 50C

• Operating Voltage
• DC 3.7V (Rechargeable Li-ion Battery)

• Pedestal Size
• Compact

• Port Size
• Standard

• Power Supply
• Rechargeable Battery

• Response Time
• 30 seconds

• Sensor
• Imported High-Sensitivity Sensor

• Shell Material
• ABS Plastic

• Temperature
• -10C ~ 50C

• Test Material
• Airborne Gases

• Test Medium
• Combustible & Toxic Gases

• Test Range
• 0~100% LEL (or Specific Gas Range as per model)

• Type
• Other, Handheld Gas Alarm

• Use
• Gas Leak Detection

• Accuracy
• 3% F.S.

• Display
• Digital LCD Display

• Gas Pressure
• Atmospheric pressure

• Humidity
• 0-95% RH (non-condensing)

• Net Weight
• Approx. 250g

• Number of Specimens
• Single-person unit

• Operating Mode
• Automatic / Real-Time Monitoring

• Operating Temperature
• -20C to +50C

• Operating Voltage
• DC 3.7V (Rechargeable Lithium Battery)

• Pedestal Size
• Compact integrated module

• Port Size
• Standard fitment for most industrial helmets

• Power Supply
• Built-in rechargeable battery (1500mAh, USB charging)

• Response Time
• 30 seconds

• Sensor
• Electrochemical / semiconductor gas sensors

• Shell Material
• Impact Resistant ABS Plastic

• Specimen Size
• Fits standard adult helmet sizes

• Temperature
• -20C to +50C

• Test Material
• Toxic and combustible gases (CO, H2S, CH4 etc.)

• Test Medium
• Ambient Air / Various Gases

• Test Range
• 0-1000 ppm (typical for toxic gases, configurable as per application)

• Type

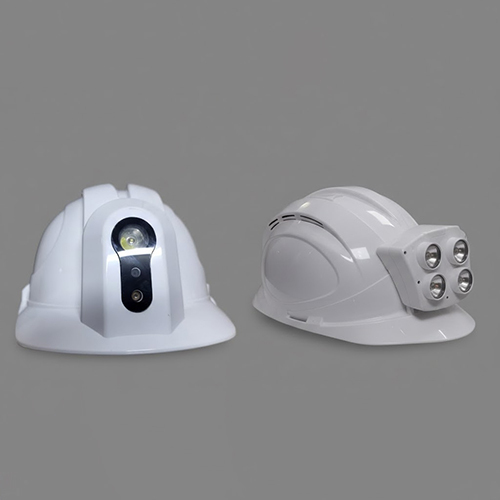

• Other, Gas Detection System Integrated with Safety Helmet

• Use
• Personal Safety, Industrial Gas Detection

• Accuracy
• 10% FS

• Display
• High-definition LCD display

• Gas Pressure
• Atmospheric

• Humidity
• 95% RH (non-condensing)

• Net Weight
• ~600 g

• Number of Specimens
• Single-point measurement

• Operating Mode
• Laser Remote Sensing

• Operating Temperature
• -20C to +50C

• Operating Voltage
• 3.7V DC (Rechargeable)

• Pedestal Size
• Handheld (Flashlight-type)

• Port Size
• Standard Handheld

• Power Supply
• Rechargeable Lithium Battery

• Response Time
• 0.1 second

• Sensor
• Tunable Diode Laser Absorption Spectroscopy (TDLAS)

• Shell Material
• High-strength Polycarbonate/Aluminum Alloy

• Specimen Size
• Detects at Distance up to 150 m

• Temperature
• -20C to +50C

• Test Material
• Natural Gas, Methane-bearing gases

• Test Medium
• Methane Gas (CH4)

• Test Range
• 0 to 50,000 ppmm

• Type
• Other, Portable Flashlight Type

• Use
• Methane Gas Leak Detection
